Magnetic analyzer

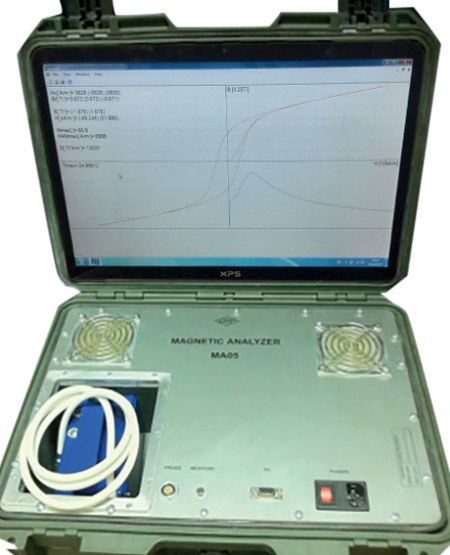

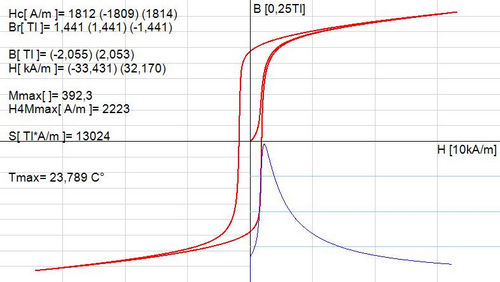

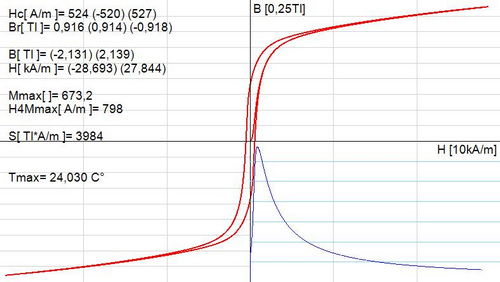

Magnetic analyzer MA-05 is developed by Ukrainian company Special Scientific Engineering and is applicable for measurement of at least six parameters of hysteresis loop: coercivity, residual induction, magnetic conductivity, loop area and relaxation parameters. These parameters are automatically converted into physical characteristics according to given equations.

Areas of operations:

● Metallurgy and metal working - steel product heat treatment quality assessment;

● High-pressure vessel, pipeline, spherical tank, storage tank, boiler;

● Steam turbine rotor, impeller, blades, bolts;

● Hydrogen furnace, cracking furnace tube;

● Nuclear reactors, pipelines and other facilities;

● Weld stress and strain state and fatigue creep assessment.

Measurements are performed directly on operated equipment, without grinding and without contact liquid at temperature of the metal from -40 up to 600 degrees C, coating up to 6 mm, spot-wise or continuously, manually or automatically, nonstop or in sleep threshold mode.



Range of excitation current

±2,5 А

Range of measured induction values

±1,5 Т

Range of measured coercivity

0,5-60А/cm

Maximum error of measurements

2%

Number of digital control outputs

8

Number of digital control inputs

8

Interface computer connection

RS232C

Number of commands in command language

219

Consumed power

220V ±10%

Weight

3,5 kg







! New!

We have a special model of Magnetic analyzer (MA) for producers of power generation equipment and others who take care of correspondence of magnetic induction values to certain values of magnetic field strength.

This MA model designed for ASTM A 341/A341A measurement standards. Samples at the video below meet the same ASTM A 341/A341A standard.



Downloads

Magnetic analyzer.docx - 13.08 Кб
